Remote Control Advertising Barrier Gate With 1 - 4 Meter Length And Fashionable Shape
Technology specificaion:
| 1. Arm type | Arm: Max 4 meters, Arm size 500*2500*4000mm with advertising on it. |
| 2. Housing color | orange / blue/ yellow / red |
| 3. Housing box material | cold rolled mild steel/stainless steel |
| 4. Rail material | Aluminum Alloy |
| 5. Motor speed | 30r/min |
| 6. MCBF | ≥5,000,000 times |
| 7. Working environments | indoor, outdoor |
| 8. Relative humidity | ≤90% no condensing |
| 9. Traffic light | optional |
| 10.Control ways | push button/remote control/access control system like charging system or RFID card reader |
| 11. Bumping bounce back | N/A |
Features & functions:
1. Special movement mechanism, with no gear or belt; no need for maintenance;stable performance and
long life-span.
2. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
3. Avoid vibrating caused by boom’s running;
4. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by abnormal
failures.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat- radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and
avoid damaging easily during frequent usage.
Main functions:
1. This equipment is controlled in wireless method, which makes its operation safe & convenient. What
you need to do is to connect the equipment with 220 V power supply and earth the exterior case; then the system could start working without any wire arrangement or matching.
2. The gate is equipped with multiple communication interfaces. It could be connected with vehicle-
detector, IR co- indicator or other accessories, to meet the safety requirement; and charging system could also be connected to realize automatic management (optional).
Package details
Two ways for your choice: 1. Crate package 2. Closed wooden case
Characteristics
1. Special movement mechanism, with no gear or belt; no need for maintenance; stable performance and
long life-span.
2. Specially-designed balance mechanism, which makes boom start slowly, run quickly and stop slowly.
3. Avoid vibrating caused by boom’s running;
4. Only 90 degree running for the boom, to avoid the accident of 360 degree running caused by
abnormal failures.
5. Specially-designed low-speed aluminum-casing motor, integrated gearbox with low noise & quick
heat-radiation;
6. Intelligent over- heat protection system for driving mechanism, to control motor’s temperature and
avoid damaging easily during frequent usage.
Competitive Advantage
1. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom
package.
2. We can provide not only product, but also system software management.Save your time and cost.
3. Special service from Goldantell:
For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if
spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any
fee.
4. Friendly and professional customer service people help you in 16 hours.

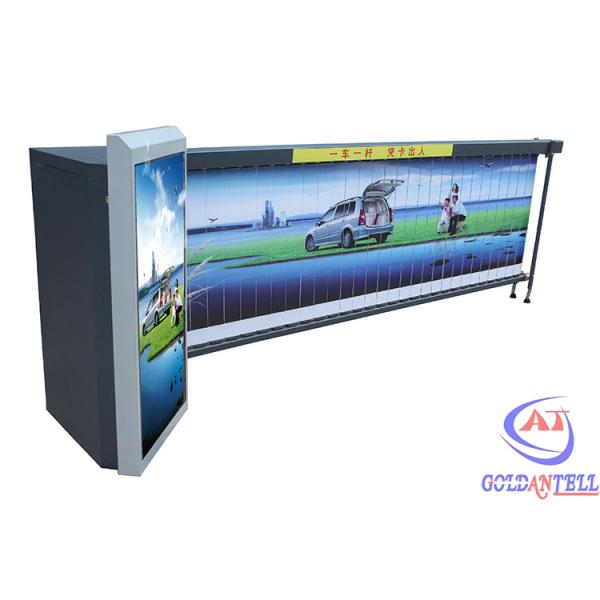

Barriers For Advertising Picture
Product Tags:
|
|
Remote Control Electronic Barrier Gates 1 - 4 Meter Length Barriers For Advertising Images
|
