CE Certified SUS304 Integrated ESD Tester Swing Barrier Gate RFID Face Recognition Access Control for Electronics Manufacturing

Brand Name : Goldantell

Model Number : GAT-660

Certification : CE/ROHS/FCC/IS9001

Place of Origin : Guangdong,China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T,western Union,LC,Paypal

Supply Ability : 1,000pcs per month

Delivery Time : 8-10 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with export wooden case for outer packing

Application : Office\School\Airport\Subway\Outdoor

Dimension : 1400 * 200 * 1000mm

Power supply : AC100V-240V

Passing speed : 45persons/min

Driving motor : 24V Brushless DC Motor

Usage : Subway station mall

Material : Stainless Steel 304/316

Lane width : 60,90,110cm or others

Contact Now

CE Certified SUS304 Integrated ESD Tester Swing Barrier Gate RFID Face Recognition Access Control for Electronics Manufacturing
Brief Description
  • CE Certified: Ensures compliance with international safety standards.
  • Stainless Steel Construction: Durable and resistant to corrosion.
  • ESD Protected Area: Safeguards sensitive electronics against static discharge.
  • Advanced Security: Combines face recognition and RFID for secure access control, secure entry with advanced biometric technology.
  • ESD Testing Function: Precisely measures static electricity levels for SMT and clean room applications.
  • Integrated Design: All-in-one solution for efficient access control.
Technical Specifications
1 Cabinet dimension 1400 (L) x 120 (W) x 1000 (H) mm
2 Cabinet material 304 stainless steel (316 ss can be custom-made)
3 Switching power supply AC220±10%V 50Hz or AC110±10%V 60Hz
4 Opening/closing time 0.2s
5 Arm material Thickness 10mm Acrylic, or tempered glass or steel (custom)
6 Access mode Single in/out or Bidirectional
7 Passthrough Width 900mm (or custom)
8 Mechanism DC Brushed motor+Clutch (or Servo motor)
9 Communication interface RS485, TCP/IP
10 Infrared sensor 6~10 pairs
11 Optimal flow rate 40 persons/min (open), 35 persons/min (closed)
12 Reset time after break down Default 10s (adjustable)
13 MCBF 5,000,000 Cycles
14 Working humidity 30%~95%
Security Features of ESD Tester System
  • Tests anti-static shoes by measuring loop resistance between personnel and insulated pedals.
  • Ensures safe electrostatic voltage levels before entering controlled areas.
  • Denies entry if electrostatic test fails.
  • Requires replacement of electrostatic protection equipment for failed tests.
Security Features of Turnstile Gate System
  • Multiple alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm.
  • Bi-directional or single way operation options.
  • Auto-open during power failure for fire safety compliance.
  • Anti-tailgating feature prevents unauthorized entry.
  • Fast opening/closing mechanism.
  • Built-in mechanical lock prevents forced opening.
  • Multiple infrared sensors for enhanced security.
Operation Applications

Bank, Fitness Gym, Factory, Hotel, Movie theaters, Office buildings

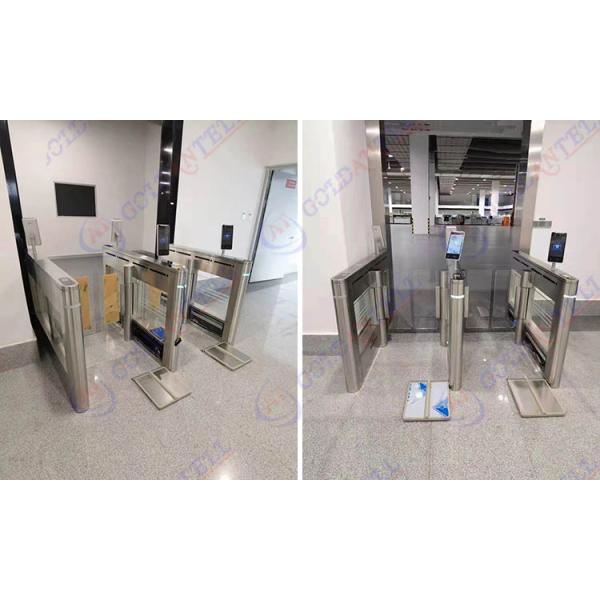

Real Product Photos
CE Certified SUS304 Integrated ESD Tester Swing Barrier Gate RFID Face Recognition Access Control for Electronics Manufacturing
FAQ
Can I have a system that only supports ESD test without software?
Vivian: sure, there are more options. our catalog can provide to help you make a choice.
What is the language version available for the software system and displayed on the machine?
Vivian: English / Chinese.
Can I have a software manual or installation instructions?
Vivian: sure, no problem, manual in the English version is available as well.
Can I customize it?
Vivian: Yes, Welcome. We are the manufacturer, we have rich OEM/ODM experience for government, etc.
What are your terms of payment?
Vivian: 100% paid before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.
What are your terms of delivery?
Vivian: EXW, FOB, CFR, CIF, DDU.
Our Service
  • Friendly and professional customer service available 16 hours daily.
  • 10+ years ODM/OEM experience for custom product design, logos, and packaging.
  • Complete solutions including product and system software management.
  • Special repair service: remote troubleshooting with video support, free spare parts replacement within 1 year warranty.
Packing Details
  • Export packaging: Wooden case with pearl wool and plastic wrap (export inspection exempt)
  • Domestic packaging: Bubble wrap with carton or pearl wool with wooden packaging
  • Professional, environmentally friendly, and secure packaging services
